D-UNIT Water-Resistant Accessory Power Supply (20A)

Compact Accessory Power Unit: Water-resistant accessory power supply designed to distribute power to multiple motorcycle electrical accessories.

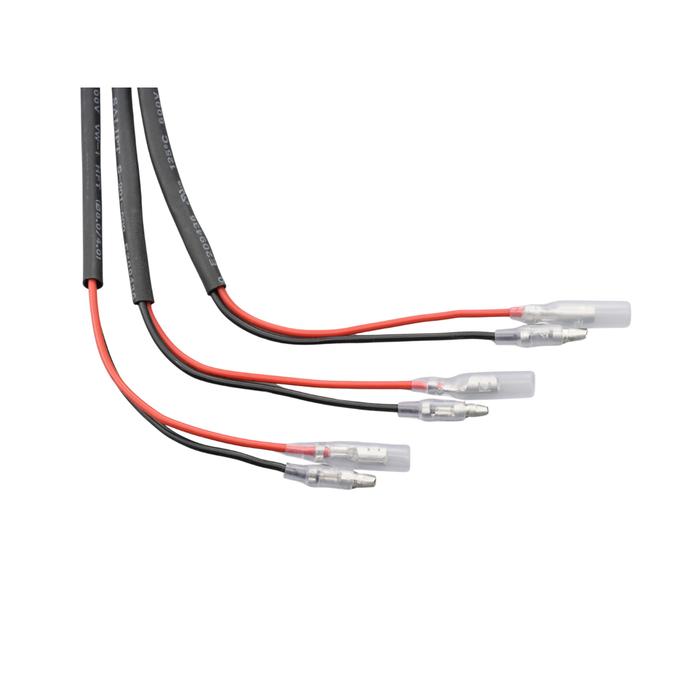

Three Independent ACC Outputs: Provides three separate accessory (ACC) power circuits that allow multiple devices to be connected individually.

Ignition-Controlled Operation: Power turns on and off with the motorcycle’s main ignition key for convenient operation and battery protection.

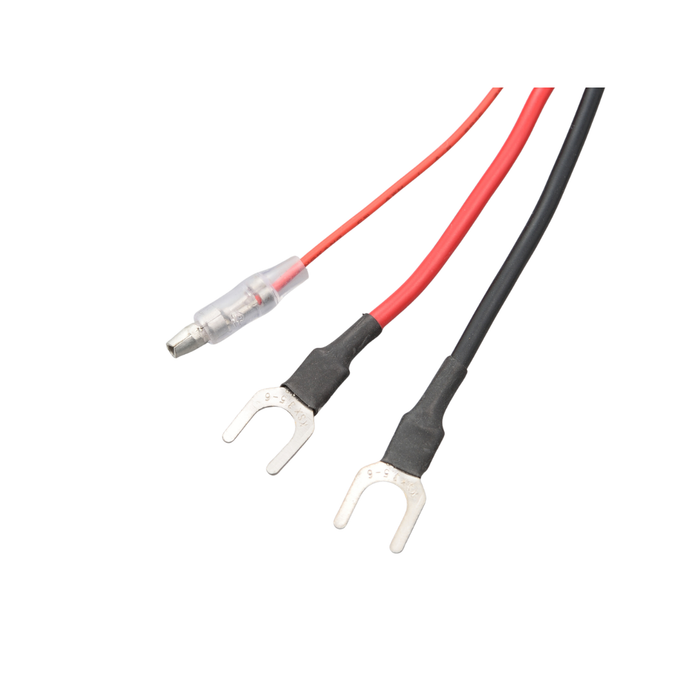

Direct Battery Power Supply: Connects directly to the battery to provide stable high-output power while reducing load on the factory electrical system.

High Output Capacity: Supports a combined accessory output of up to 20A, suitable for powering lights, USB chargers, GPS units, and other electronics.

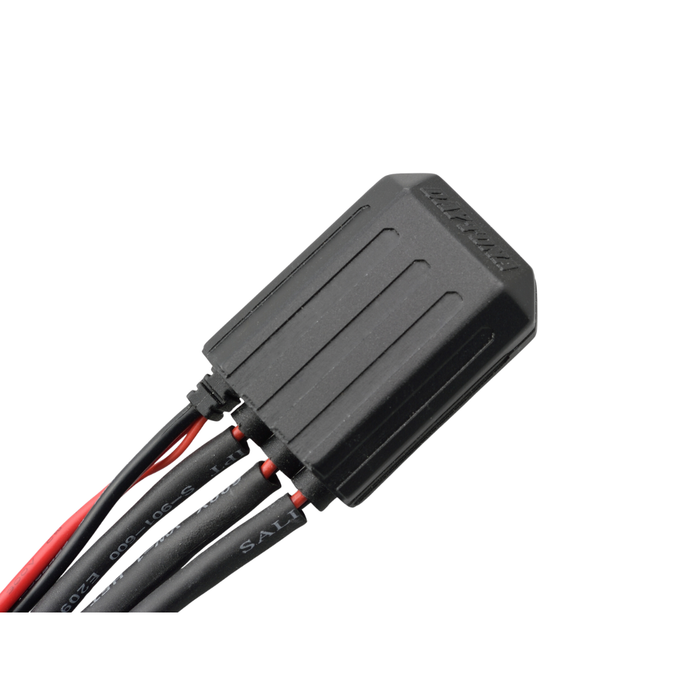

Water-Resistant Design: The main unit features a water-resistant construction, allowing installation in areas exposed to rain.

Specifications

• Power source: Direct battery connection

• Accessory outputs: 3 independent ACC circuits

• Maximum total output: 20A

• Operation: Ignition key linked ON/OFF control

• Housing: Water-resistant design

Functions

• Three accessory power outputs

• Ignition-controlled power supply

• Direct battery power distribution

• Stable accessory power management

Notes

• The unit body is water-resistant, but wiring terminals should be installed in a location protected from water.

• The built-in PTC thermistor protects the circuit by increasing resistance when current exceeds the rated level.

• If an accessory stops operating due to overload protection, disconnect the device immediately to allow the unit to cool.

• The unit may generate heat during operation. Installation in enclosed areas with poor ventilation, such as under tightly sealed seats, is not recommended.

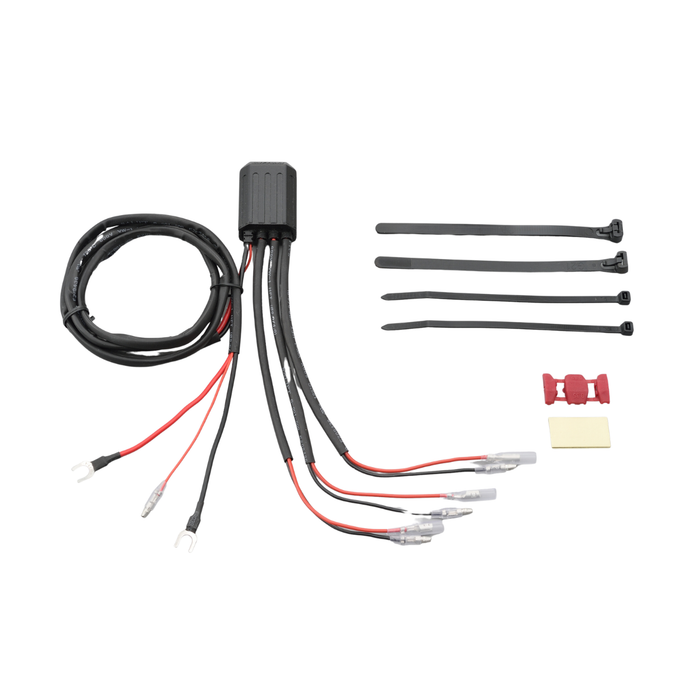

Included Items

• Power supply unit ×1

• Double-sided mounting tape ×1

• Wiring connector ×1

• Cable ties ×2

• Release-type cable ties ×2
